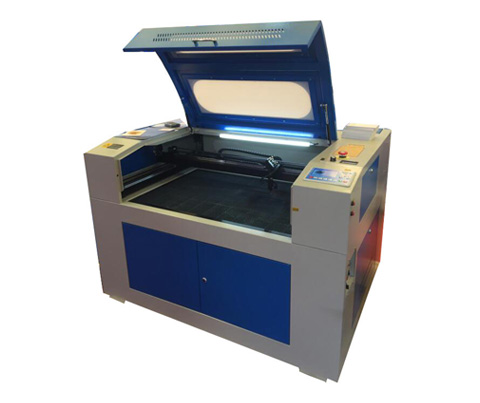

UL-E series high-precision laser cutting machine is a compact model with Max. processing area 1300x700mm, equipped with the digital control, modular mechanics and software specialized on the cutting of handicraft, electronic and advertising model. It’s suitable for prototype and light or on-demand production, also be best choice for educational purpose and your starting business.
General Details
UL-E series high-precision laser cutting machine is a compact model with Max. processing area 1300x700mm, equipped with the digital control, modular mechanics and software specialized on the cutting of handicraft, electronic and advertising model. It’s suitable for prototype and light or on-demand production, also be best choice for educational purpose and your starting business.
Features
1. Engraving the printed images and drawing , engraving the rastor pictures, the engraving accuracy can be adjustable.
2. The daily production can be recorded by the processing time and frequency.
3. Give the user best usability & reliability, higher acceleration and speed, plus high precision and accuracy.
Applicable Materials
Textiles&Fabrics, Wood&Ploywood, Rubber, Plastic, Acrylic, Filmes&Foils, Foam, Paper, Packing box, Leather, Arts&crafts, Electronics parts, Non-metal materials, and bamboo products, touch screens etc.
Above includes materials commonly processed by laser, for questions on other materials please contact an applications specialist.
Technical Specification
| Product Model | UL-E-6040 | UL-E-10060 | UL-E-13070 |
| Laser-Type | CO2 laser, Safety Class 2 | ||
| Processing Area (W x L) | 600×400mm | 1000×600mm | 1300×700mm |
| Cooling Mode | Water-cooling | ||
| Engraving Speed | 0-60000mm/min | ||
| Positioning Accuracy | ≤±0.01mm | ||
| Data or File Format | AI、BMP、PLT、DXF、TXT | ||
| Laser Power | 65W-100W | ||
| Power Requirements | AC 110/220V±5% | ||
| Software | Unikonex Control and Engraving system | ||
| Exhaust Requirements | External Exhaust or Air Cleaner Required (Consult factory for Specification) | ||
| Mechanical Design | Fully enclosed with safety interlock system, laser safety class 2, CE compliant, maintenance-free, brushless DC motors. | ||
Applicable Material / Application
