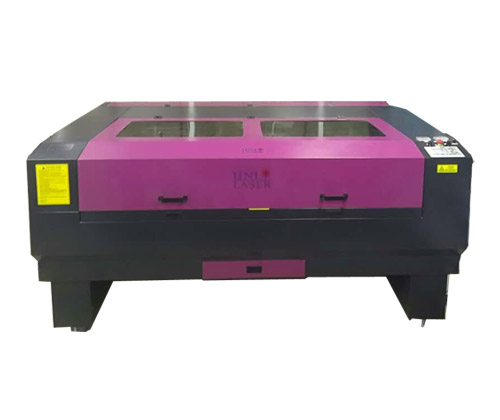

UL-VS series high-precision laser cutting machine is a compact model with CCD camera for automatic cutting smaller size label/logo which max. 120x120 mm, equipped with the digital control system, moduler mechanics and software specialized on the cutting of handicraft, electronic and advertising model. Its suitable for prototype and light or on-demand production, also be best choice for educational purpose and your starting business.
General Details
UL-VS series high-precision laser cutting machine is a compact model with CCD camera for automatic cutting smaller size label/logo which max. 120x120 mm, equipped with the digital control system, moduler mechanics and software specialized on the cutting of handicraft, electronic and advertising model. Its suitable for prototype and light or on-demand production, also be best choice for educational purpose and your starting business.
For any questions on this product with varing application, please contact an applications specialist.
Features
1. Laser cutting machine which is based on advanced DSP technology for improving the performance, dedicated speed controller software design ensures fast and stable moving, plus automatic laser compensation technology.
2. Suitable for end-user who has a high requirements on the precision of cutting, it is widely used for most of popular application such as garment , leather, toy, computer embroidery, handcraft, advertisement, decoration, building upholster, package materials, digital printing materials, paper products, etc.
3. CCD Camera positioning system, captures image via CCD camera and automatically recognize the printed design and curves, automatic camera detection enables printed materials to be cut out precisely along the printed outline.
4. Protection system: enclosure protection, emergency stop switch, leakage protection.
5. Give the user best usablility&reliability, higher acceleration and speed, plus high precision and accuracy
Applicable Materials
Textiles&Fabrics, Acrylic, Filmes&Foils, Foam, Paper, Packaging box, Leather, and digital printing materials, etc.
Above includes materials commonly processed by laser, for questions on other materials please contact an applications specialist.
Technical Specification
| Product Model | UL-VS-10060 | UL-VS-130100 | UL-VS-160100 |
| Laser-Type | CO2 laser, Safety Class 1 | ||
| Processing Area (W x L) | 1000×600mm | 1300×1000mm | 1600×1000mm |
| Cooling Mode | Water-cooling | ||
| Cutting Speed | 0-50000mm/min | ||
| Positioning Accuracy | ≤±0.01mm | ||
| Data or File Format | AI、BMP、PLT、DXF、TXT、DST | ||
| Laser Power | 65W-100W | ||
| Power Requirements | AC 110/220V±5% | ||
| Software | Unikonex Control and Cutting system, CCD Vision Recognization System | ||
| Exhaust Requirements | External Exhaust or Air Cleaner Required (Consult factory for Specification) | ||
| Mechanical Design |
Fully enclosed with safety interlock system, laser safety class 1, CE compliant, maintenance-free, brushless DC motors. |
||
Applicable Material / Application
